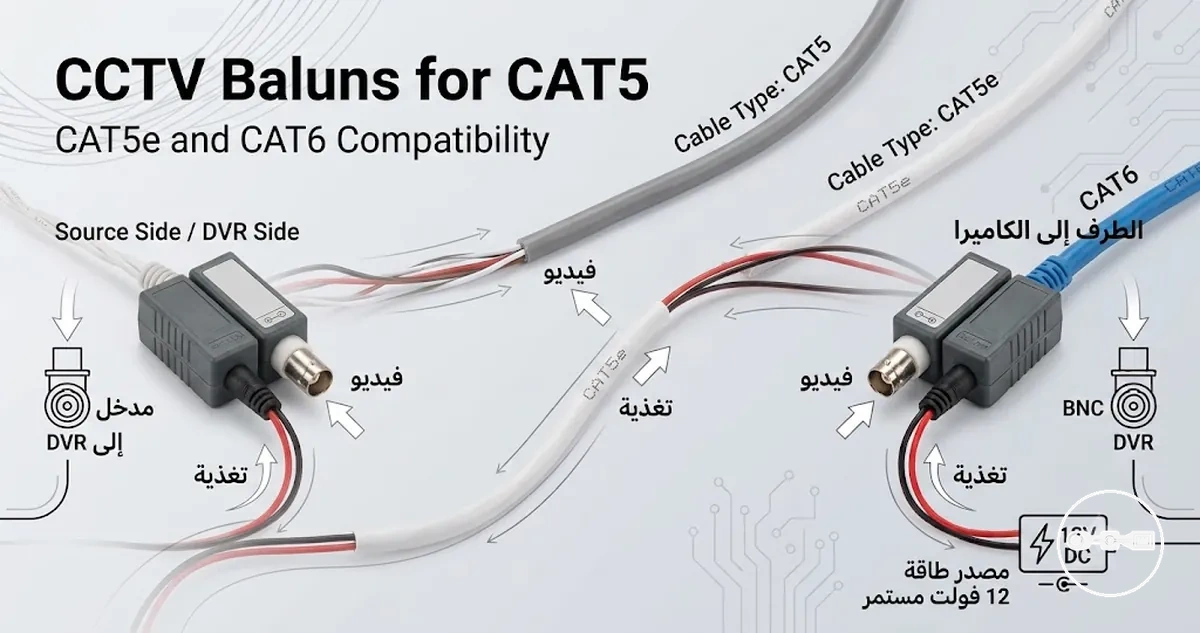

CCTV Video Baluns Compatibility with CAT5, CAT5e and CAT6 Cable Systems
CCTV video balun compatibility with CAT5 cable, CAT5e cable, and CAT6 cable depends on cable construction, conductor quality, and shielding differences rather than assuming uniform performance across all cable standards. In this context, signal stability in a CCTV video balun system is shaped by how UTP twisted pair transmission interacts with interference resistance, attenuation behavior, and overall installation quality. The relationship is typically expressed through an EAV logic chain where cable type influences structure, structure influences noise resistance, and noise resistance impacts transmission stability.
CAT5 cable, CAT5e cable, and CAT6 cable introduce different structural conditions that can affect interference resistance and signal stability in CCTV video balun transmission, especially through variations in twisting density and crosstalk control. These differences may influence attenuation and long-distance performance, but outcomes usually vary based on cable quality, installation environment, and system integrity rather than a fixed equivalence between categories.
How CCTV Video Baluns Operate Across Twisted Pair Ethernet Cabling Environments

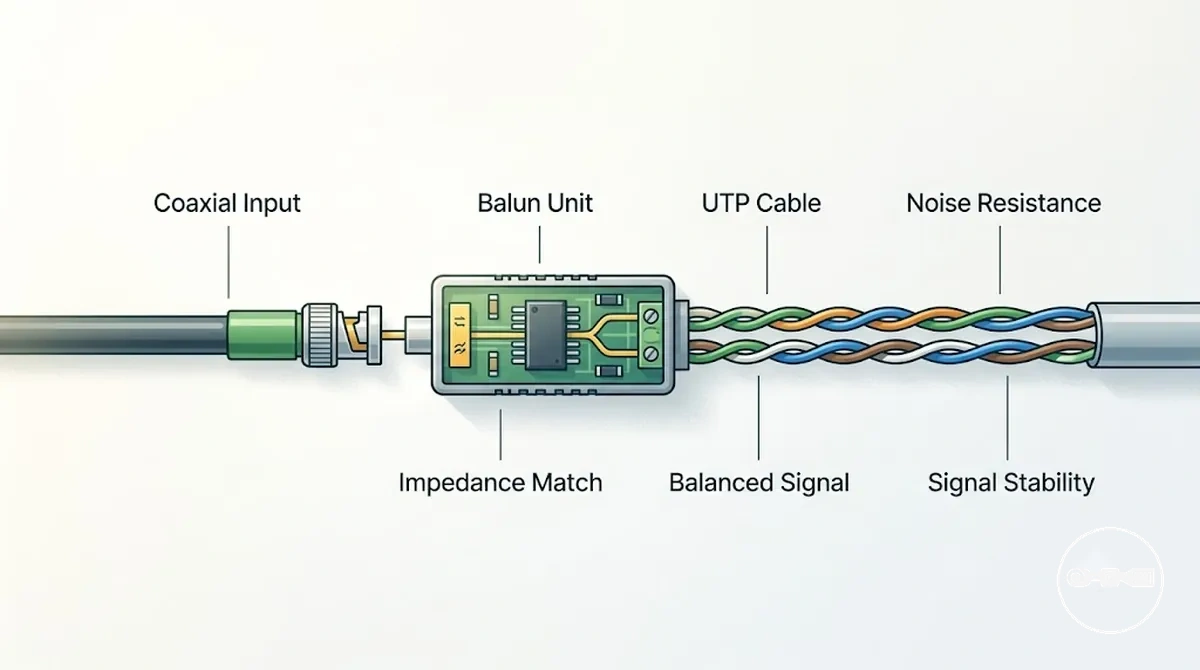

CCTV video balun is a signal interface device that converts a coaxial signal into balanced transmission over UTP cable environments through impedance matching and balanced transmission, and its operation is linked to how baluns work with UTP cable. This conversion process allows analog video transmission to move from coaxial-based delivery into twisted pair cabling while maintaining signal continuity through impedance alignment and balanced transmission principles that support signal stability under typical installation conditions.
The operation of CCTV video baluns depends on how impedance matching reduces mismatch losses between coaxial signal sources and twisted pair transmission lines, which can help maintain interference resistance in varying environments. Balanced transmission across UTP cable pairs helps distribute electrical noise more evenly, which may support signal stability, although actual performance typically varies based on cable quality, installation conditions, and external electromagnetic interference levels.
CAT5 vs CAT5e vs CAT6 Cable Differences in CCTV Video Balun Performance and Stability
CAT5, CAT5e, and CAT6 cable behavior in CCTV video balun systems depends on how each cable structure interacts with crosstalk control, interference resistance, and signal stability rather than any fixed performance ranking. In twisted pair transmission environments, each cable category responds differently to balanced signaling from a CCTV video balun, where outcomes are shaped by conductor layout, noise exposure, and installation quality conditions.

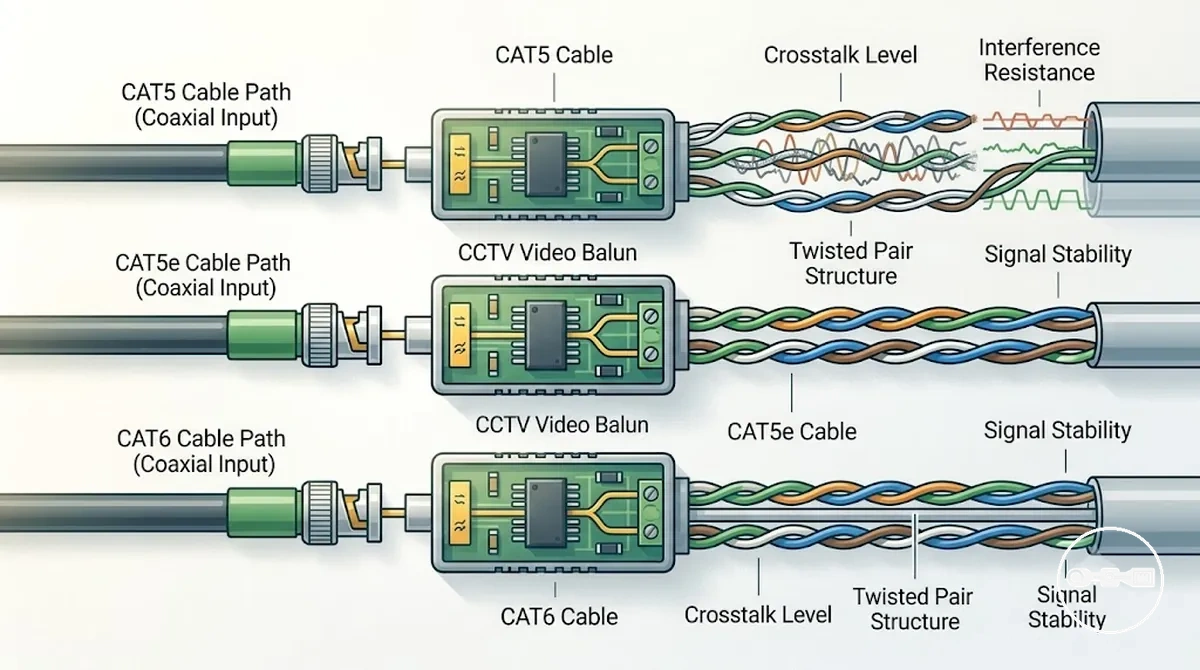

CAT5 cable generally shows higher sensitivity to crosstalk and external interference due to more basic twist structure compared to CAT5e and CAT6, which introduce improved pair separation and tighter twist control that can support more stable signal behavior in CCTV video balun transmission. CAT6 further refines internal pair isolation, which may improve interference resistance in higher-noise installation environments, although results still depend on cable quality and termination practices.
The impact of CAT5, CAT5e, and CAT6 differences on CCTV video balun performance is context-dependent, since signal stability is also influenced by routing quality, electromagnetic interference levels, and overall installation consistency. In practical use, these structural differences shape how effectively balanced transmission is maintained, but they do not guarantee fixed outcomes across all environments or setups.
UTP Twisted Pair Structure and Signal Transmission Behavior in CCTV Video Balun Systems

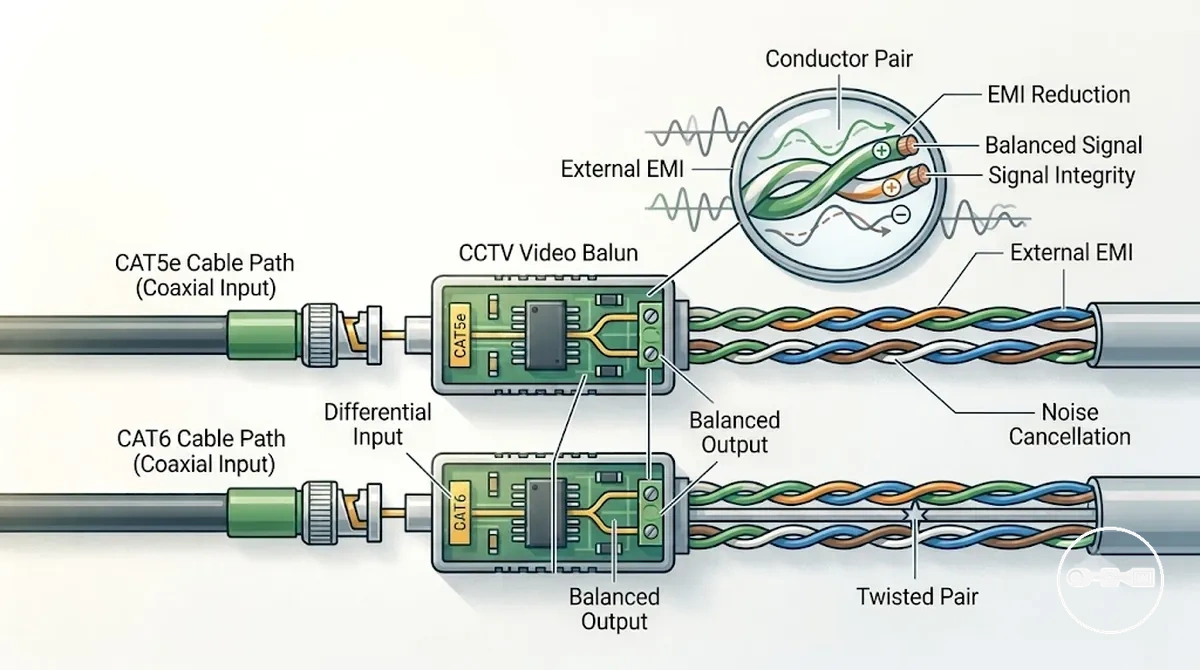

UTP twisted pair structure in CCTV video balun systems refers to the paired conductor geometry used to support balanced transmission, where signal behavior is influenced by how the twisted layout helps reduce electromagnetic interference and maintain impedance balance. This structure allows analog video signals converted through a balun to travel over UTP cabling with improved signal alignment between conductor pairs under typical installation conditions.
The twisted pair configuration can reduce electromagnetic interference by limiting uneven exposure of the conductors to external noise sources, which may help maintain signal integrity in CCTV video balun systems. Balanced transmission across the paired wires supports more even signal distribution, while noise cancellation behavior depends on cable quality, routing method, and surrounding electromagnetic conditions.
CCTV Video Balun Cable Requirements for Reliable Video Transmission

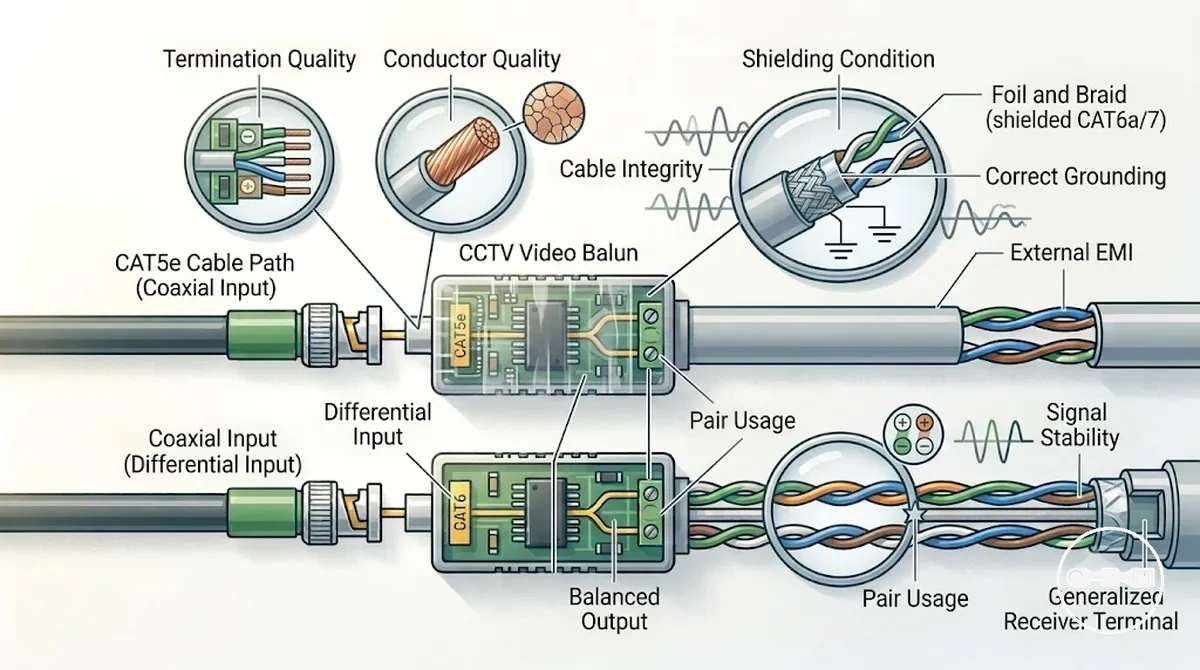

CCTV video balun cable requirements depend on conductor quality, shielding condition, termination accuracy, pair usage, and overall cable integrity to support stable video transmission over CAT-based cabling systems. These conditions define how consistently the balun can maintain balanced signal transfer and reduce interference during operation.
Reliable CCTV video transmission through baluns is influenced by how well these conditions are maintained across the installation. Variations in termination quality, damaged conductors, or improper pair usage may introduce instability, especially in environments with higher electromagnetic interference or longer cable runs.
- Conductor quality: Consistent copper integrity supports stable signal transfer
- Shielding condition: Helps reduce external electromagnetic interference when present
- Termination accuracy: Proper connections help maintain balanced transmission
- Pair usage: Correct twisted pair mapping supports signal stability
- Cable integrity: Physical damage or degradation can reduce transmission reliability
Cable Distance Limits and Signal Loss Factors in CAT5 and CAT6 CCTV Balun Installations

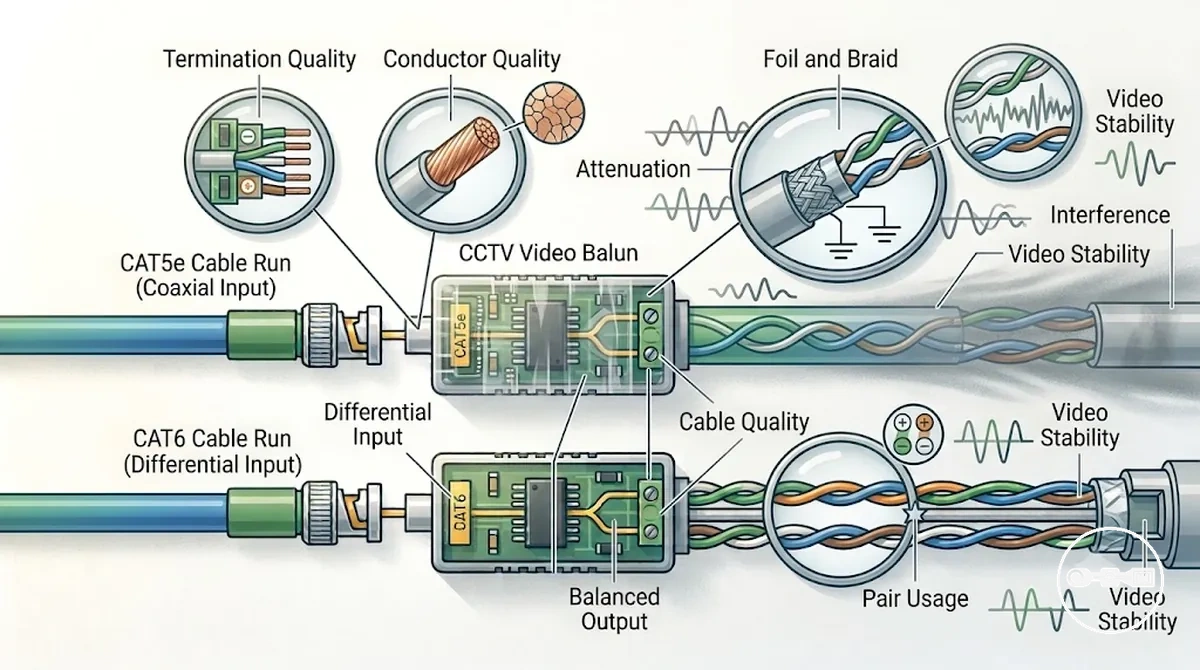

Cable distance in CAT5 and CAT6 CCTV balun installations directly affects signal quality because longer cable runs increase attenuation, which gradually reduces signal strength and makes the transmission more sensitive to interference. As distance increases, the combined effect of signal loss and environmental noise can degrade video stability, especially when cable quality or installation conditions are inconsistent.
As attenuation builds over longer cable paths, the video signal becomes weaker and more vulnerable to distortion caused by external electromagnetic interference. This effect is typically more noticeable in installations where cable routing passes through high-noise environments or where cable integrity is compromised.
Signal degradation in CCTV balun systems is also influenced by cable quality, termination consistency, and overall installation practices. When these factors are not properly maintained, distance-related losses become more pronounced and can lead to unstable or reduced video clarity over time.
BNC to CAT5 and CAT6 Connectivity Compatibility and Signal Adaptation Logic
BNC to CAT5 and CAT6 connectivity compatibility depends on balun-based signal conversion that adapts coaxial BNC output into balanced transmission suitable for UTP cabling. The BNC interface carries an unbalanced coaxial signal, while CAT5 and CAT6 systems require balanced differential signaling, so a balun is used to bridge this structural difference. Compatibility is therefore conditional and depends on correct impedance matching, stable conversion, and proper system configuration.
The conversion process is performed through a CCTV balun, which transforms the coaxial BNC signal into a balanced format that can travel over CAT5 or CAT6 twisted pair cables. This adaptation relies on impedance matching between coaxial and UTP transmission paths to reduce signal mismatch and maintain usable video integrity. In some installations, the outcome may also depend on how termination is handled, including variations such as CCTV balun termination options, which influence how the signal is prepared for stable transmission.

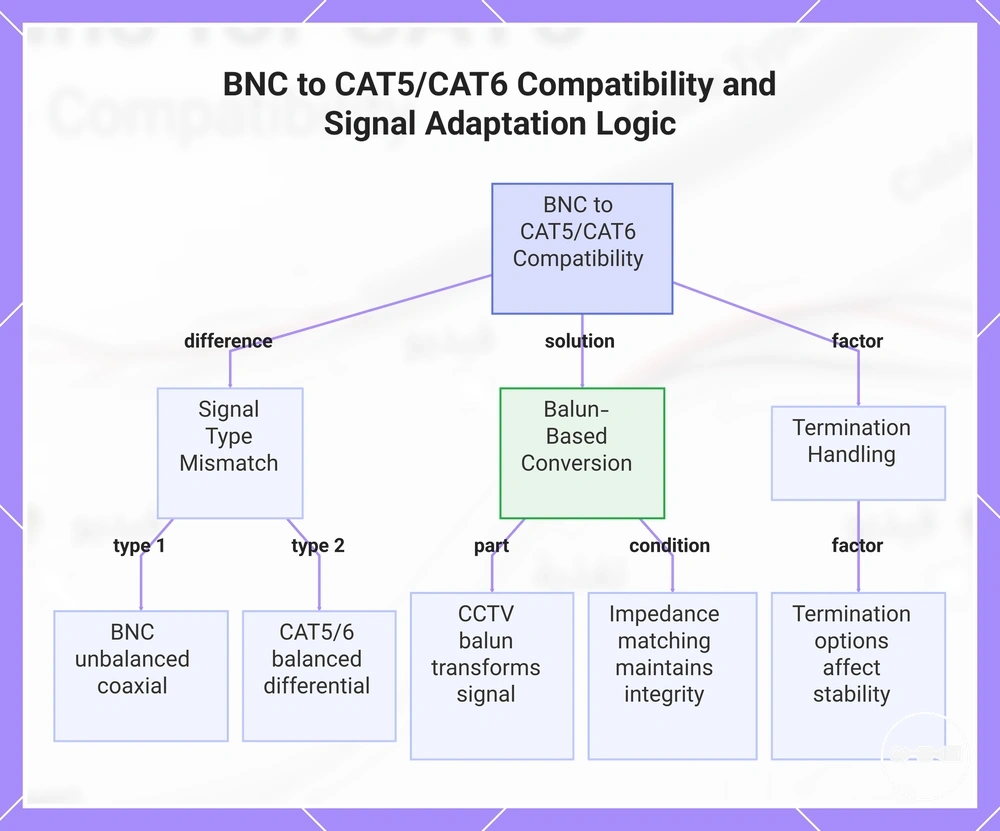

This chart shows how BNC to CAT5/CAT6 connectivity works through balun-based signal conversion, including the signal type mismatch, conversion process, and termination factors.
Twisted Pair Wiring Logic and Pair Utilization for CCTV Video Balun Signal Integrity
Twisted Pair Wiring Logic and Pair Utilization for CCTV Video Balun Signal Integrity depends on how polarity alignment and twisted pair selection interact to maintain stable CCTV video transmission. Polarity mismatches or incorrect pair assignment can increase interference sensitivity and reduce signal stability when converting BNC coaxial signals into UTP-based transmission through a balun.
Signal stability in CCTV video balun systems is directly influenced by how wiring consistency preserves balanced transmission across twisted pair cables. When twisted pair selection aligns correctly with polarity requirements, interference effects are typically reduced, and signal behavior remains more stable, while inconsistent wiring may introduce variability in performance depending on installation conditions. In structured installations, this relationship is often considered alongside CCTV video balun wiring practices.

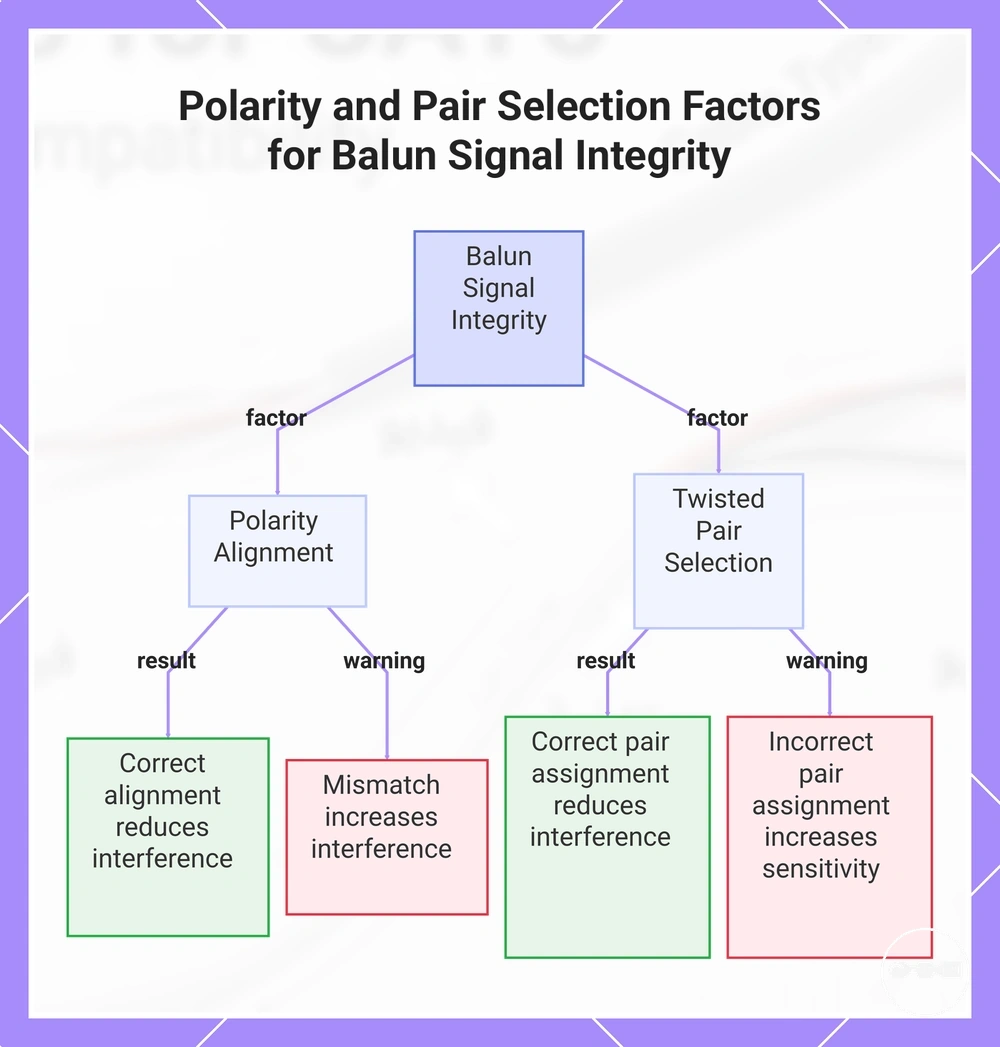

This chart shows how polarity alignment and twisted pair selection influence signal integrity in CCTV video balun systems, including the effects of correct and incorrect wiring.
Compatibility Boundaries and Common Misconfiguration Scenarios in CCTV Video Balun Cabling
Compatibility boundaries in CCTV video balun cabling are mainly defined by misconfiguration rather than hardware failure, especially when signal loss or unstable video appears across CAT-based transmission systems. Most CCTV issues occur when termination, wiring alignment, or twisted pair usage is incorrect, which disrupts balanced signal transfer and increases sensitivity to interference.
Misconfiguration scenarios typically involve incorrect termination practices, poor cable quality handling, or wiring errors that affect how the balun converts coaxial BNC signals into UTP transmission. When impedance matching or pair selection is inconsistent, signal degradation may appear as noise, flickering, or intermittent video loss, depending on installation conditions and environmental interference levels.
From a diagnostic perspective, isolating faults in CCTV video balun systems usually starts by checking wiring consistency and termination accuracy rather than replacing components. Signal instability is often conditional on how well the cabling structure maintains proper balance across the transmission path, especially in mixed CAT5, CAT5e, or CAT6 environments.

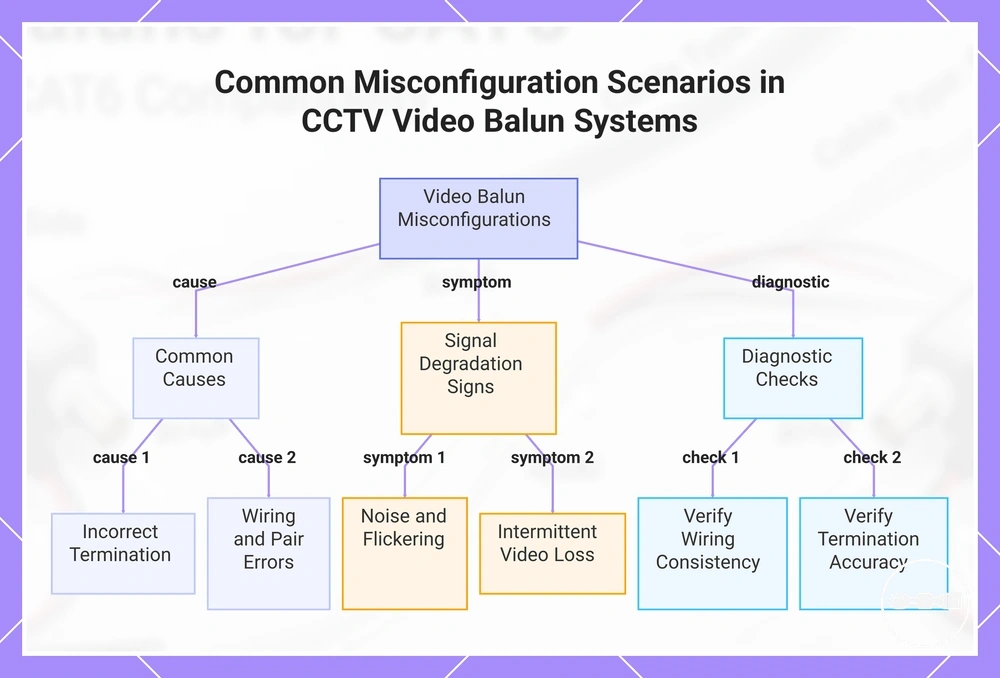

This chart shows the main causes, symptoms, and diagnostic checks for common misconfiguration issues in CCTV video balun cabling, emphasizing that problems arise from incorrect wiring rather than hardware failure.
