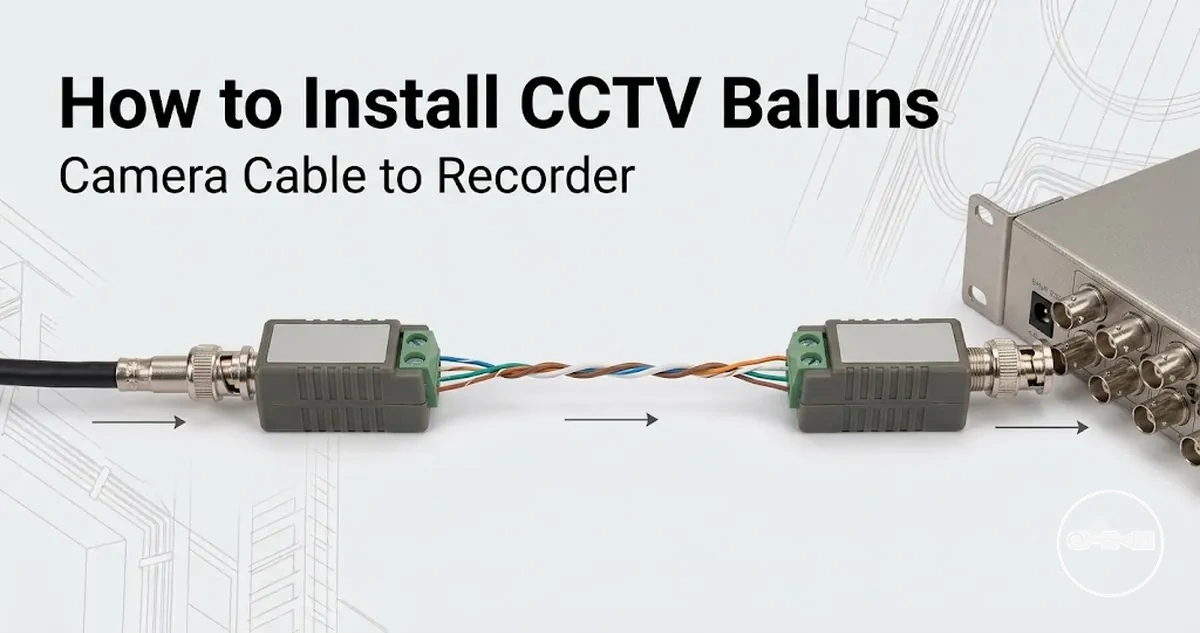

CCTV video baluns installed between a camera cable and recorder connection point.

CCTV Video Balun Installation for Reliable Camera-to-DVR Signal Transmission

CCTV video balun installation is the structured setup of a complete camera-to-DVR signal path that uses a CCTV video balun to convert and carry video through UTP cable while maintaining stable connectivity through BNC connector endpoints. The process defines how camera output is adapted and transmitted across structured cabling so the signal can reach the DVR connection without breaking signal integrity. In most installation contexts, the focus is not only on connecting components but on ensuring that each link in the transmission chain supports stable video delivery under real operating conditions. This includes how the balun device interacts with cabling layout, connector quality, and system compatibility. As a result, installation should be understood as a controlled system design rather than a simple physical hookup.

The CCTV video balun installation process works by maintaining a continuous signal chain from the camera output through the BNC connector, into the balun device, across the UTP cable, and finally into the DVR connection. The signal integrity depends on how consistently each interface preserves transmission quality during conversion and routing. In practical terms, more stable performance is often achieved when termination quality, cable routing discipline, and connector alignment work together as a unified system. The UTP cable acts as the transmission medium, but its effectiveness depends on correct pairing with compatible balun types and properly secured connections. Signal behavior may vary depending on distance, interference exposure, and overall installation layout, which means outcomes are often condition-dependent rather than fixed.

In real-world scenarios, installation planning becomes critical when multiple cameras, long cable runs, or mixed compatibility environments are involved, as these conditions can influence overall signal stability. A properly structured setup helps reduce risks such as degraded video quality or inconsistent DVR input detection by ensuring each camera path is aligned with its intended transmission route. When installation is viewed as a full system workflow, it becomes easier to anticipate where signal loss or mismatch may occur before finalizing connections. This system-level perspective prepares the foundation for more detailed configuration areas such as component selection, routing strategy, and fault handling in the broader installation process.

Understanding CCTV Video Baluns in an Installation Context and System Role

CCTV video balun is a signal conversion component that enables CCTV video transmission over UTP cable by bridging analog or HD camera output into a structured cabling format using BNC connector interfaces. It defines how signal conversion occurs between the camera output and DVR connection through controlled transfer rather than direct coaxial wiring, allowing structured cabling systems to carry video signals effectively. In an installation context, CCTV video balun establishes the system role of mapping BNC connector outputs to UTP cable transmission paths while maintaining signal integrity across the chain. Its function is centered on enabling signal transfer between camera output and DVR input within structured CCTV architectures. Transmission distance and stability may vary depending on cable quality, interference conditions, and system compatibility.

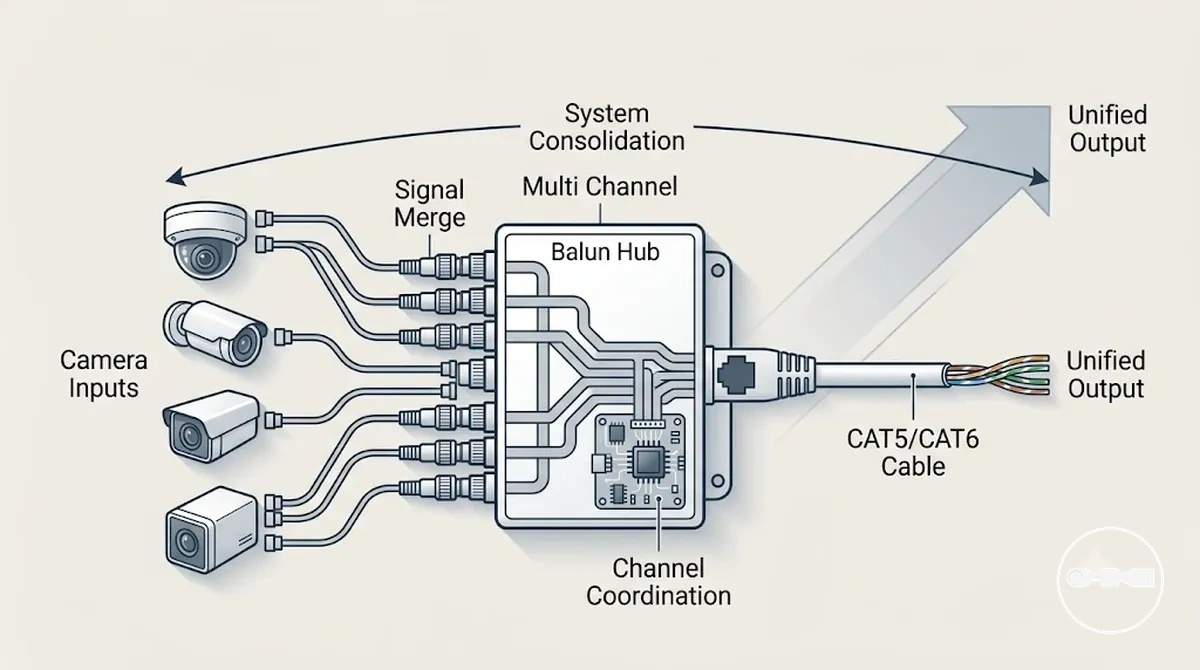

Signal conversion from CCTV camera through balun to DVR over UTP cable

From a system perspective, CCTV video baluns operate as a signal adapter layer that aligns analog CCTV or HD CCTV outputs with structured cabling requirements. Their performance depends on how consistently they manage signal conversion between BNC input and UTP cable output while preserving transmission stability under varying conditions.

Different CCTV video balun types can influence system behavior, especially in scenarios involving longer transmission distance or mixed compatibility setups. While the core role remains signal conversion, the effectiveness depends on how well the device aligns with cabling quality, connector stability, and overall installation design. In practice, system performance should be evaluated as a combined interaction of components rather than a single-device outcome. This conceptual boundary helps separate system understanding from later installation and troubleshooting stages.

Low-Voltage Safety Requirements and Electrical Precautions Before Installation

Low-voltage CCTV installation refers to a controlled working condition where power is present at reduced electrical levels, but still capable of causing equipment stress or connection instability if handled incorrectly. Risk conditions increase when CCTV video balun connections are made while power is active, especially across UTP cable runs and BNC connector interfaces. In many installation environments, unstable grounding awareness or poor connector handling can introduce signal disturbance that affects camera output and DVR connection reliability. Cable routing areas with exposed conductors can also increase the chance of accidental shorting or interference. These conditions make the installation environment dependent on disciplined handling of both electrical and physical components. As a result, power isolation becomes a critical factor before any system-level connection work begins.

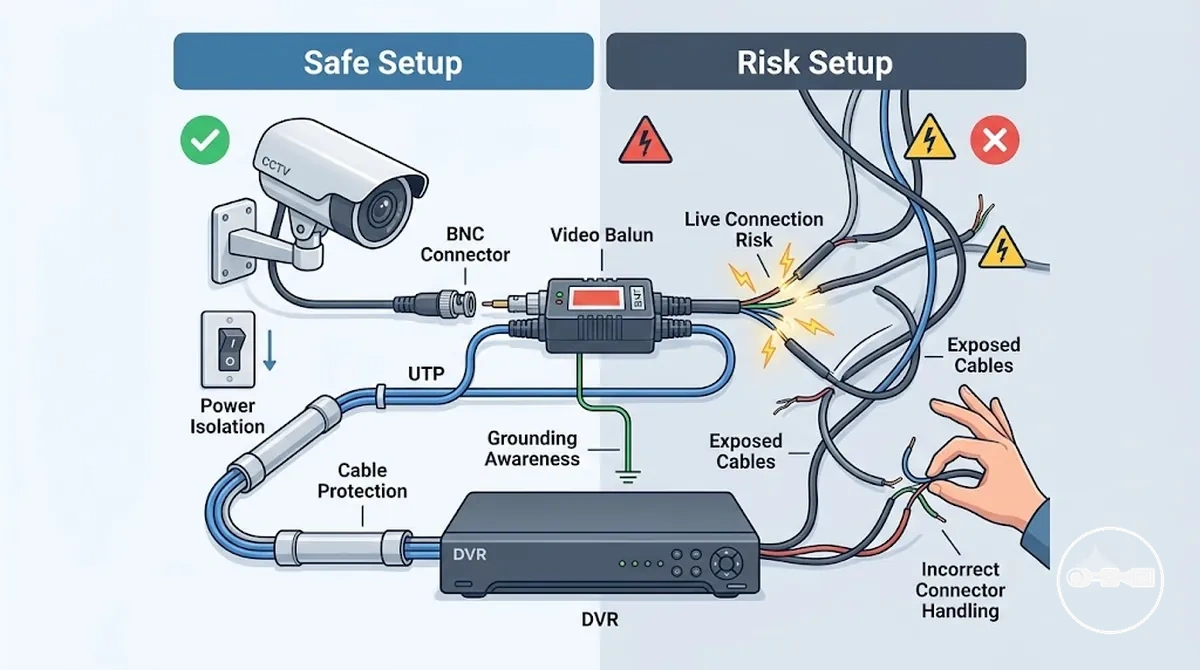

Safe and unsafe CCTV wiring showing power isolation and cable protection around balun and DVR connections

Low-voltage CCTV systems should be prepared with controlled safety checks before any connector handling or signal routing begins, especially where CCTV video balun devices connect BNC connector outputs to UTP cable lines. The correct approach starts with power isolation to prevent accidental signal interference or equipment stress during setup. Grounding awareness helps reduce unwanted noise paths that may affect transmission stability between camera output and DVR connection. Cable protection also ensures that the physical integrity of the UTP cable is maintained during routing and termination. Caution: live termination or connector handling under power can increase signal instability and may place unnecessary stress on system components. Following these precautions supports safer system behavior by reducing avoidable electrical and signal-related risks, while maintaining stable operating conditions when power is restored.

Required Tools, Connectors, and Compatible Components for CCTV Balun Setup

Installation toolkit for CCTV video balun setup refers to the collection of physical tools and connection components required to enable stable signal conversion between CCTV camera outputs and DVR systems through UTP cable infrastructure. It is built around structured compatibility between termination tools, connector types, and cabling standards that support consistent signal flow. In most low-voltage CCTV environments, the toolkit defines how efficiently BNC connector interfaces are adapted into structured network-style cabling using a balun device. The system depends on accurate alignment between physical connectors and cable preparation tools to maintain signal integrity. Without the correct toolset, even properly designed components may fail to deliver stable transmission across the installation layout.

CCTV installation toolkit showing balun, cables, connectors, and labeled tools for signal setup

The required setup works by combining termination tools with compatible connectors and structured cabling elements to ensure reliable signal transfer from camera output to DVR connection. A crimping tool is typically used as part of termination tools to prepare RJ45 connector ends on UTP cable, enabling structured transmission paths for video signals. The BNC connector provides the camera-side interface, while the RJ45 connector supports structured cabling adaptation through the balun device. UTP cable acts as the transmission medium that carries converted signals across distance, where quality and consistency of termination directly influence stability. When these components are aligned correctly, the system supports more predictable signal behavior across varied installation conditions.

Component compatibility plays a critical role in preventing signal loss or instability, especially when mismatched connectors or poor termination practices are introduced. Incorrect pairing between BNC connector interfaces and RJ45 connector terminations can create impedance issues that affect overall transmission quality. Similarly, inconsistent use of termination tools may reduce connection reliability across the installation layout. Cable preparation quality and connector fit are also key factors that influence long-term system stability. For this reason, tool selection and component alignment should always be evaluated as a single interconnected system rather than isolated parts.

Cable Compatibility, Distance Limits, and Signal Quality Factors in CCTV Balun Systems

Cable category and installation distance determine how CCTV video balun systems behave in terms of signal stability and signal attenuation. The relationship between UTP cable type and transmission length directly influences how cleanly video data is carried from camera output to DVR input. In low-voltage CCTV setups, signal quality is not fixed by a single component but by how cable structure supports or limits transmission performance. UTP cable characteristics affect how much interference resistance is maintained during routing and termination. As distance increases, signal attenuation typically becomes more noticeable depending on installation conditions. For this reason, cable selection and layout must always be considered together rather than independently.

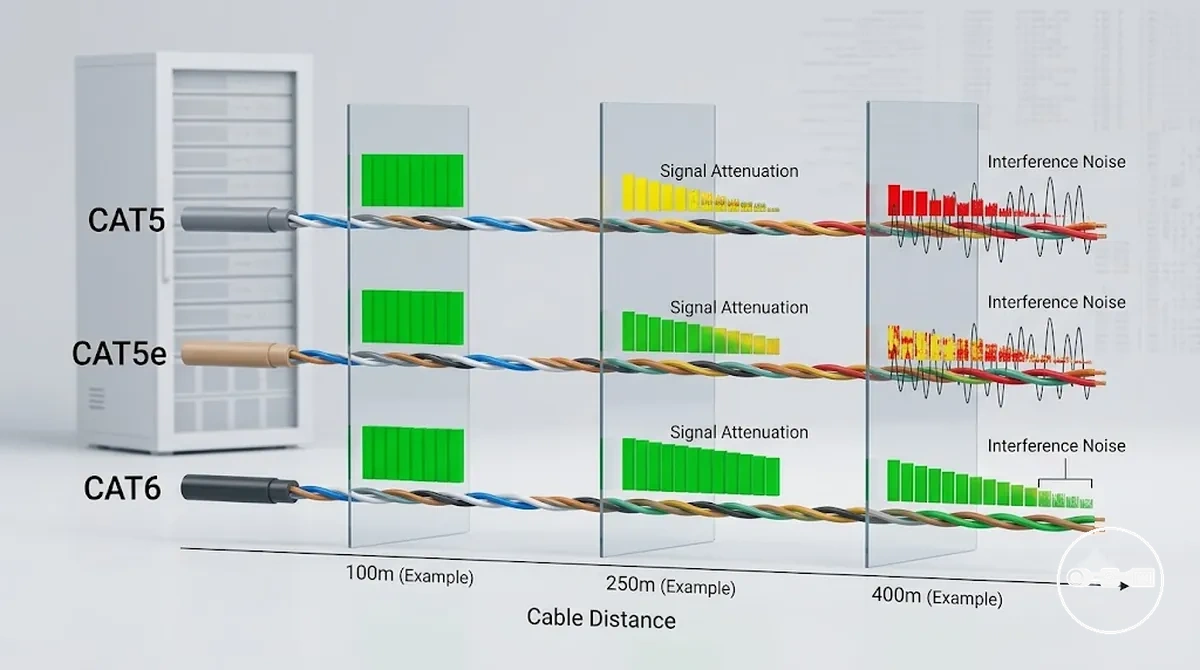

Comparison of CAT5 CAT5e and CAT6 cable performance with signal distance and attenuation visualization

CAT5, CAT5e, and CAT6 cables differ in how they handle interference resistance, twisted pair consistency, and general transmission quality in CCTV video balun setups. CAT5 cable provides basic structured cabling support but may show higher signal loss in longer runs or noisy environments. CAT5e improves twisted pair precision, which can reduce noise and improve signal stability compared to CAT5 under similar conditions. CAT6 typically offers stronger interference resistance and more consistent transmission behavior due to tighter internal structure, although real performance still depends on installation quality. CAT5e is often used as a balanced option between cost and performance in many low-voltage CCTV systems. However, none of these cable categories guarantees fixed distance performance because environmental factors still influence outcomes. Performance differences become more noticeable as cable distance increases in real installations.

Cable Type Interference Resistance Signal Stability Typical Behavior
CAT5 Basic Moderate More sensitive to distance and noise
CAT5e Improved Stable Balanced performance in most setups
CAT6 Higher More consistent Better suited for longer or noisy runs

Installation environment and cable distance jointly influence how much signal degradation occurs in CCTV balun systems. Longer cable runs increase the likelihood of signal attenuation, especially when routing passes through electrically noisy or physically complex environments. Moisture exposure, electromagnetic interference, and poor cable management can further affect transmission quality regardless of cable category. Even with higher-grade cables like CAT6, performance still depends on termination quality and layout design. Therefore, cable category should be treated as a contributing factor rather than a fixed guarantee of signal performance across all installation conditions.

Planning Camera, Cable, and DVR Layout for Correct CCTV Balun Installation

Installation layout planning is the foundation of a stable CCTV video balun system because it defines how camera positioning, cable routing, and DVR alignment interact before any physical work begins. When planning is weak, the system layout can introduce inefficient paths that increase total cable distance and may reduce signal quality under real conditions. Camera positioning sets the spatial coverage area and determines how far signals must travel through the system. Cable routing efficiency influences how directly signals move between endpoints and how much exposure exists to interference sources. DVR alignment defines how channels are organized and how connections map to physical camera locations. Together, these elements shape the installation layout and its ability to maintain stable transmission behavior.

Installation layout depends on structured coordination between camera positioning, cable routing, and DVR alignment rather than isolated placement decisions. Camera positioning should prioritize coverage logic while keeping routing distance within practical limits to support consistent signal quality. Cable routing should follow predictable and controlled paths that reduce unnecessary bends, overlaps, or interference exposure. DVR alignment should match the physical layout of cameras to support clear connection planning and organized input mapping. A simple planning checklist includes defining camera coverage points, mapping routing paths, aligning DVR channels with camera locations, estimating total cable distance, and identifying possible interference zones. This structured approach helps reduce risks caused by excessive cable length or poorly planned routing in CCTV balun systems.

Well-structured planning can support system stability by reducing variability in signal behavior across the installation layout. Optimized camera positioning helps maintain balanced coverage while limiting excessive cable routing complexity. Controlled cable routing can reduce exposure to environmental interference that may affect signal quality. Proper DVR alignment improves system organization and reduces connection mismatches between inputs and physical cameras. However, outcomes remain dependent on execution conditions, including installation environment and routing accuracy. For this reason, installation layout planning should be treated as a control mechanism that improves predictability rather than guaranteeing fixed performance results.

This chart shows the three main elements of CCTV balun installation layout planning and their specific requirements and benefits, which together support system stability.

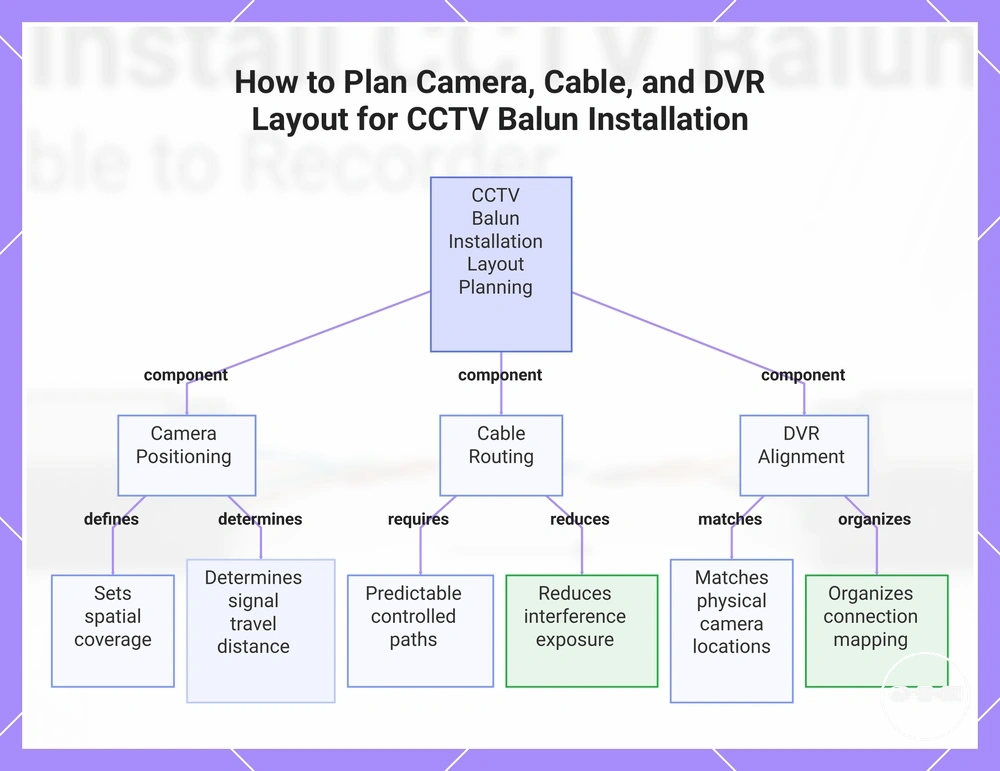

How to Plan Camera, Cable, and DVR Layout for CCTV Balun Installation

Step-by-Step Installation Process from Camera Connection to DVR Integration

Step-by-step installation process defines how signal path continuity is maintained from camera termination through balun pairing, UTP routing, and DVR input connection in a structured CCTV video balun system. The workflow depends on correct endpoint alignment between each stage so that the signal path remains consistent from source to recorder. In most configurations, installation outcomes vary based on system design, cable layout, and channel structure. Camera termination prepares the signal at the source, while balun pairing ensures correct conversion for transmission. UTP routing then carries the signal through the installation layout toward the recording system. DVR input completes the chain by assigning incoming signals to structured channels.

Camera termination begins the process by preparing the camera output for stable transmission through the balun pair connection. The balun pair functions as the interface that converts and aligns the signal into a format suitable for UTP routing. Proper connection continuity at this stage is important to avoid mismatched polarity or reversed pairing that can disrupt signal path integrity. Wiring order must remain consistent with the intended layout to support stable transmission behavior. In many systems, incorrect camera termination can lead to unstable or missing signals at the DVR input stage. Once the connection is completed, basic continuity checks are typically used to confirm correct endpoint alignment before routing proceeds. This stage establishes the foundation of the entire signal path.

UTP routing carries the converted signal through the installation layout and determines how efficiently the signal reaches the DVR input. Pair matching and cable labeling are critical at this stage to maintain installation sequence clarity and reduce configuration errors. Incorrect pairing during routing can result in cross-signal interference or misaligned endpoints. The routing path should follow a structured plan that preserves signal path continuity while minimizing unnecessary complexity. Installation sequence discipline helps maintain clarity when multiple camera lines are involved in the same system. This stage focuses on maintaining stable transmission conditions across the physical layout.

DVR input integration completes the process by mapping incoming signals to correct channel assignments within the recording system. DVR configuration must align with the physical wiring order to ensure that each camera feed is correctly identified. Signal verification is typically performed after connection to confirm that transmission integrity is maintained from camera to recorder. Channel assignment errors can lead to mismatched displays or incorrect recording mapping within the system. Proper endpoint alignment between UTP routing and DVR input ensures stable system organization. At this stage, the full signal path is validated to confirm consistent continuity across the installation.

This chart shows the three main stages of installing a CCTV balun system, from signal preparation through UTP routing to DVR input integration, with key checks and actions at each stage.

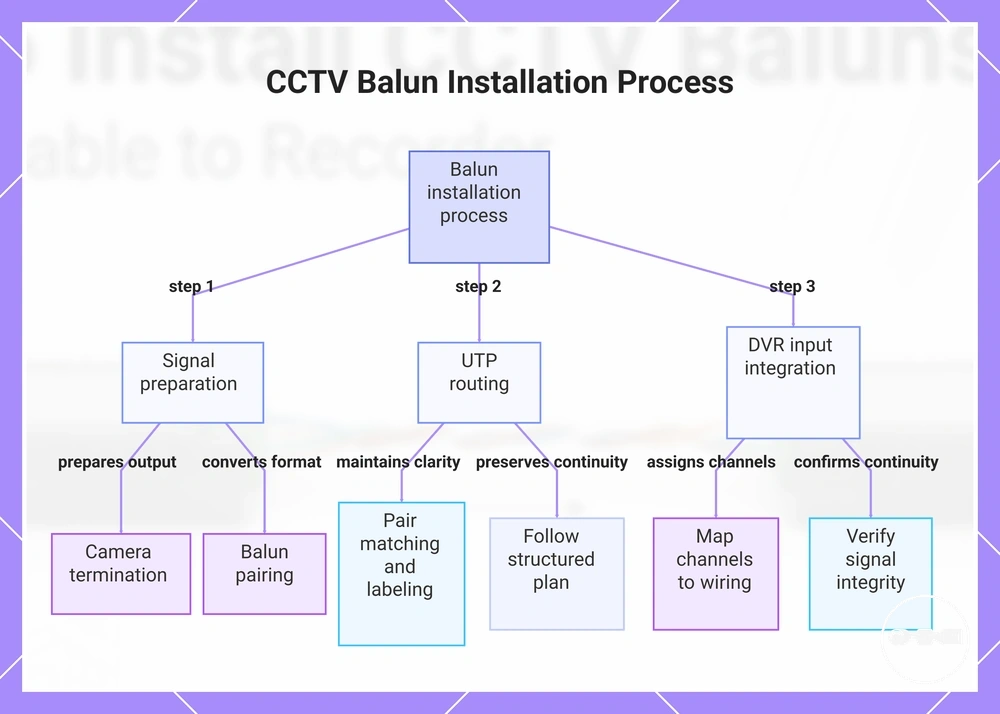

CCTV Balun Installation Process

Connecting Video and Power Baluns for Stable Signal and Power Delivery

Connecting video and power baluns refers to a combined transmission approach where a power balun and video signal pathway operate as separate but coordinated channels within a CCTV installation system. The power balun manages CCTV power delivery, while the video signal is carried through a dedicated balun path over UTP cable depending on system configuration. This separation supports independent handling of electrical load and signal transmission within the same infrastructure. The power-video system is designed to separate, deliver, and stabilize functions across different pathways rather than merging them into a single line. Overall behavior depends on how the system is structured and how each pathway is aligned within the installation layout.

Voltage stability in these combined setups depends on distance, load requirements, and UTP cable quality used for CCTV power delivery. Longer cable runs may introduce voltage drop, which can affect connected devices depending on their power demand and configuration. The video signal and power pathways must remain properly separated to reduce interference risk between electrical and data transmission. Electrical noise may still occur if isolation between pathways is not maintained consistently across the layout. Caution: voltage drop becomes more likely as cable length increases or load demand rises, and it can impact system stability depending on installation conditions. For this reason, stability is conditional rather than guaranteed and varies by setup design.

Configuration choices determine how effectively power balun and video signal paths operate within the same installation environment. UTP cable routing, distance planning, and load distribution all influence CCTV power delivery and overall transmission behavior. Some configurations improve separation between signal and power lines, which may reduce interference risk under certain conditions. Other layouts prioritize installation efficiency but may increase sensitivity to voltage and signal variation. System performance therefore depends on how well configuration decisions align with equipment requirements and environmental constraints. Combined transmission should be evaluated as a system-level design where outcomes vary by installation structure rather than fixed behavior.

This chart explains the design principle, stability factors, and configuration trade-offs of combined video and power balun transmission in CCTV systems.

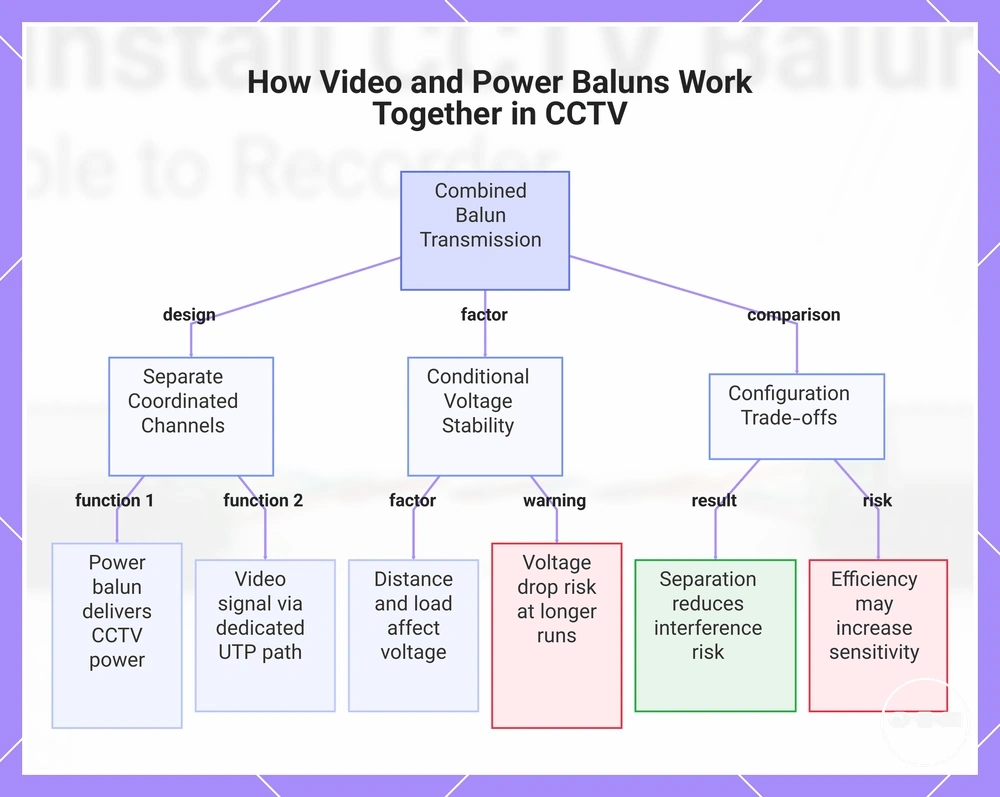

How Video and Power Baluns Work Together in CCTV

CCTV Balun Connection Diagrams, Wiring Rules, and Polarity Configuration

Ensuring correct CCTV balun wiring configuration starts with polarity and twisted pair alignment because they directly determine signal integrity across the transmission path. CCTV balun polarity refers to the correct matching of positive and negative signal paths, and it ensures stable video signal behavior during transmission. Twisted pair structure supports balanced electrical flow, which helps maintain consistent signal integrity across the UTP cable. Connector alignment ensures both endpoints follow the same wiring logic from camera to receiver. When polarity is incorrectly assigned, signal loss or distortion may occur under certain installation conditions. Overall performance depends on how accurately wiring rules are interpreted and applied at both ends of the system.

Wiring consistency is essential because CCTV systems depend on accurate endpoint matching between camera termination and receiving units. Signal integrity is maintained when twisted pair conductors remain correctly paired throughout the UTP cable run. Connector alignment must remain consistent on both sides to preserve stable transmission behavior. Inconsistent wiring may introduce mismatch conditions that affect transmission stability and increase interference risk. Diagram interpretation helps ensure installation correctness before physical connection is completed. Pairing accuracy during termination supports stable system behavior across different installation layouts. When wiring rules are followed consistently, the likelihood of distortion is reduced under normal operating conditions.

Incorrect polarity or pairing can be identified through several diagnostic cues related to signal behavior and transmission quality.

These issues often indicate problems in wiring consistency, connector alignment, or endpoint matching. In many cases, they are linked to incorrect polarity configuration or pairing errors rather than complete system failure. Basic error detection includes verifying polarity alignment, checking twisted pair order, and confirming termination accuracy. Diagram review can help identify mismatches between intended wiring logic and actual installation. When these checks are applied systematically, installation correctness can be improved without assuming absolute system breakdown.

This diagram shows the core wiring rules for CCTV baluns, including polarity and twisted pair alignment, common symptoms of incorrect wiring, and basic error detection checks.

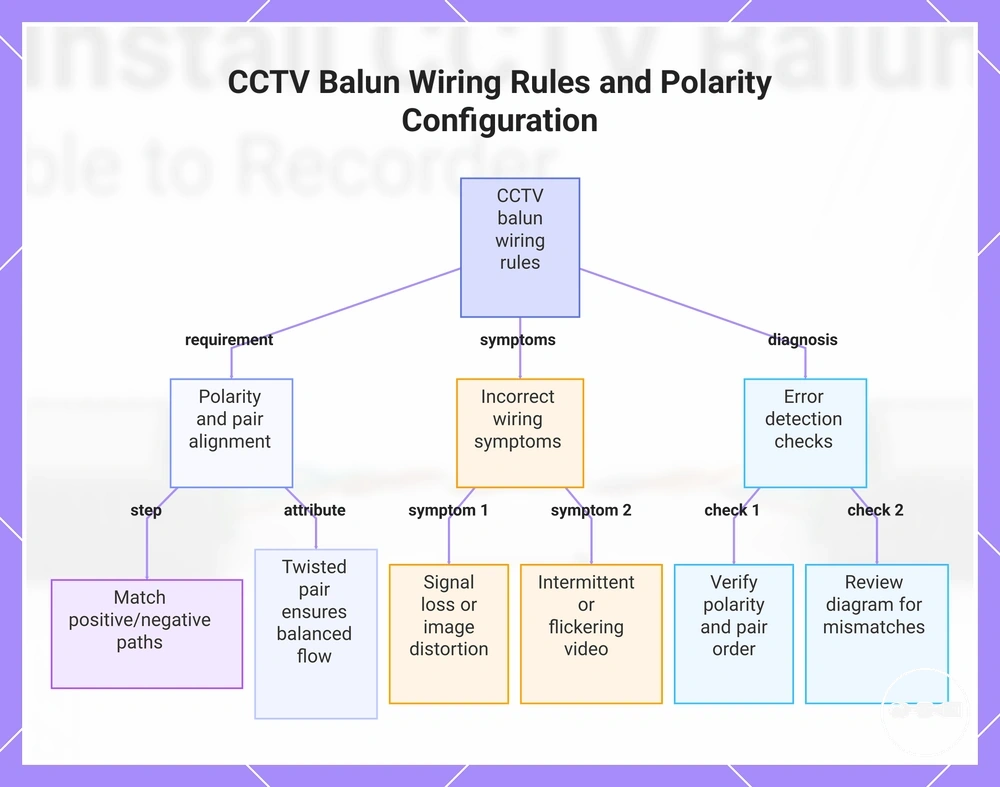

CCTV Balun Wiring Rules and Polarity Configuration

Common Installation Mistakes That Cause Signal Loss and Video Distortion

Installation mistakes in CCTV balun systems often appear when loose termination, incorrect pairing, excessive cable length, or interference exposure disrupt the intended signal path. These installation errors typically affect how wiring consistency and connector alignment maintain stable transmission across the system. In many cases, signal integrity does not fail instantly but degrades gradually as multiple small faults interact. Cable length beyond practical limits can increase sensitivity to interference and amplify weak connection issues. Loose termination may reduce stable contact at endpoints and introduce intermittent connectivity issues. Incorrect pairing of twisted pairs can further destabilize balanced transmission and affect overall video clarity.

Signal loss and video distortion usually result from a combination of installation mistakes rather than a single isolated fault. Loose termination can directly contribute to unstable connections, often leading to intermittent signal loss. Incorrect pairing disrupts balanced transmission and may cause visible distortion or uneven image quality. Excessive cable length increases attenuation, which weakens signal strength and can lead to more noticeable degradation. Interference from nearby electrical sources can introduce noise patterns that affect signal clarity and stability. Connector alignment issues may further reduce signal integrity by weakening endpoint continuity. Together, these factors influence whether the system experiences minor degradation or more critical connectivity failure conditions.

Diagnosis of installation errors requires structured comparison of symptoms and fault patterns rather than isolated assumptions.

Installation Mistake Symptom Diagnostic Pattern
Loose termination Signal loss Intermittent or unstable video connection
Incorrect pairing Video distortion Noise or uneven image clarity
Excessive cable length Weak signal Gradual degradation over distance
Interference exposure Video noise Flickering or patterned distortion

Effective fault detection involves checking wiring consistency, verifying connector alignment, and reviewing cable length in relation to installation conditions. Loose termination points should be evaluated for stable physical contact. Incorrect pairing should be traced through twisted pair alignment at both endpoints. Interference sources should be identified by reviewing nearby electrical devices or routing paths. Diagnostic patterns should always consider the possibility of multiple interacting faults rather than assuming a single cause. This approach improves clarity when distinguishing between minor degradation and more critical system instability.

Post-Installation Testing, Signal Verification, and Performance Validation

Post-installation testing is a system validation process that confirms signal clarity, stability, and continuity across the CCTV balun setup after installation is completed. It focuses on signal verification to ensure the transmission path maintains consistent behavior under real operating conditions. Image clarity is assessed to confirm whether the video output remains stable without distortion or degradation. Connection stability indicates whether endpoints maintain reliable continuity during runtime use. Continuity check results help confirm that the full signal path remains complete from camera to DVR. Performance validation evaluates the overall quality of system operation based on these verification points rather than introducing new setup actions.

Testing typically includes multiple verification checks that evaluate different aspects of runtime behavior. A signal verification check is used to assess whether video output remains stable and readable across the system. A continuity check confirms that the connection path remains complete without interruption between endpoints. Image clarity review helps identify distortion, noise, or degradation that may indicate underlying issues. Connection stability assessment focuses on whether links remain consistent during continuous operation. Fault detection during testing can highlight early signs of instability that were not visible during setup. Performance validation combines these checks to ensure the system operates within expected stability conditions.

Test Type Purpose Diagnostic Focus
Signal verification Confirm stable video output Weak or unstable transmission
Continuity check Verify full signal path Broken or interrupted connection
Image clarity test Assess video quality Distortion or noise
Connection stability review Check runtime reliability Intermittent signal behavior

Effective performance validation depends on interpreting all test results together rather than focusing on a single indicator. Stable systems typically show consistent signal verification and clear image output across runtime conditions. Minor fluctuations may occur depending on environment and cable conditions but should not affect overall continuity. When multiple checks indicate inconsistency, it often suggests underlying issues in transmission stability or connection reliability. Post-installation testing therefore serves as a confirmation stage that verifies system quality under operational conditions.

Troubleshooting Installation Issues Such as No Video or Weak Signal Output

When no video or weak signal appears in a CCTV balun system, the issue is typically linked to disruptions in cable integrity, connector fault conditions, or incorrect signal alignment across the transmission path. These symptoms indicate that signal continuity is not stable between the camera and DVR under operating conditions. In many cases, interference exposure or degraded transmission pathways can contribute to reduced video quality or complete signal loss. Weak signal output often appears as flickering or low image clarity, while no video usually suggests a more severe break in the connection chain. Both conditions should be treated as system-level connectivity issues until verified through structured checks. Faults may also appear in combination, meaning multiple weak points can affect the same output behavior.

Diagnostic resolution begins with a structured fault isolation flow that evaluates the system from physical wiring to signal alignment. A cable integrity check is performed first to confirm the UTP path is continuous and undamaged. After that, a connector fault inspection verifies whether termination points are loose, unstable, or improperly seated. The next step includes a polarity check to confirm correct twisted pair alignment across both ends of the system. Once physical and electrical alignment is verified, signal verification is used to assess whether video output stabilizes. Weak signal cases may improve after correcting connector or polarity issues, while no video conditions often require deeper inspection of the transmission path. The diagnostic flow helps isolate whether the failure is caused by wiring, termination, or signal mismatch rather than assuming a single root cause.

Symptom Likely Cause Diagnostic Action Resolution Indicator
No video Broken cable integrity or severe connector fault Cable integrity check Signal restored after repair or replacement
Weak signal Loose connector fault or partial interference Connector inspection and signal verification Improved image clarity and stable output
Intermittent distortion Incorrect polarity or unstable termination Polarity check and continuity review Stable video output during runtime

Repair decisions depend on whether the issue is caused by correctable connection faults or deeper structural failures in the transmission path. If cable integrity is compromised, replacement is often required because signal continuity cannot be reliably restored. If a connector fault is identified, re-termination or adjustment may restore stable performance. A failed polarity check can often be corrected without replacing components, provided the cable itself is intact. When weak signal or no video persists after all diagnostic steps, system stability may require component-level replacement. Final validation should always confirm stable signal verification before considering the system operational.
